Technical

Table and Field Definitions Lime CRM

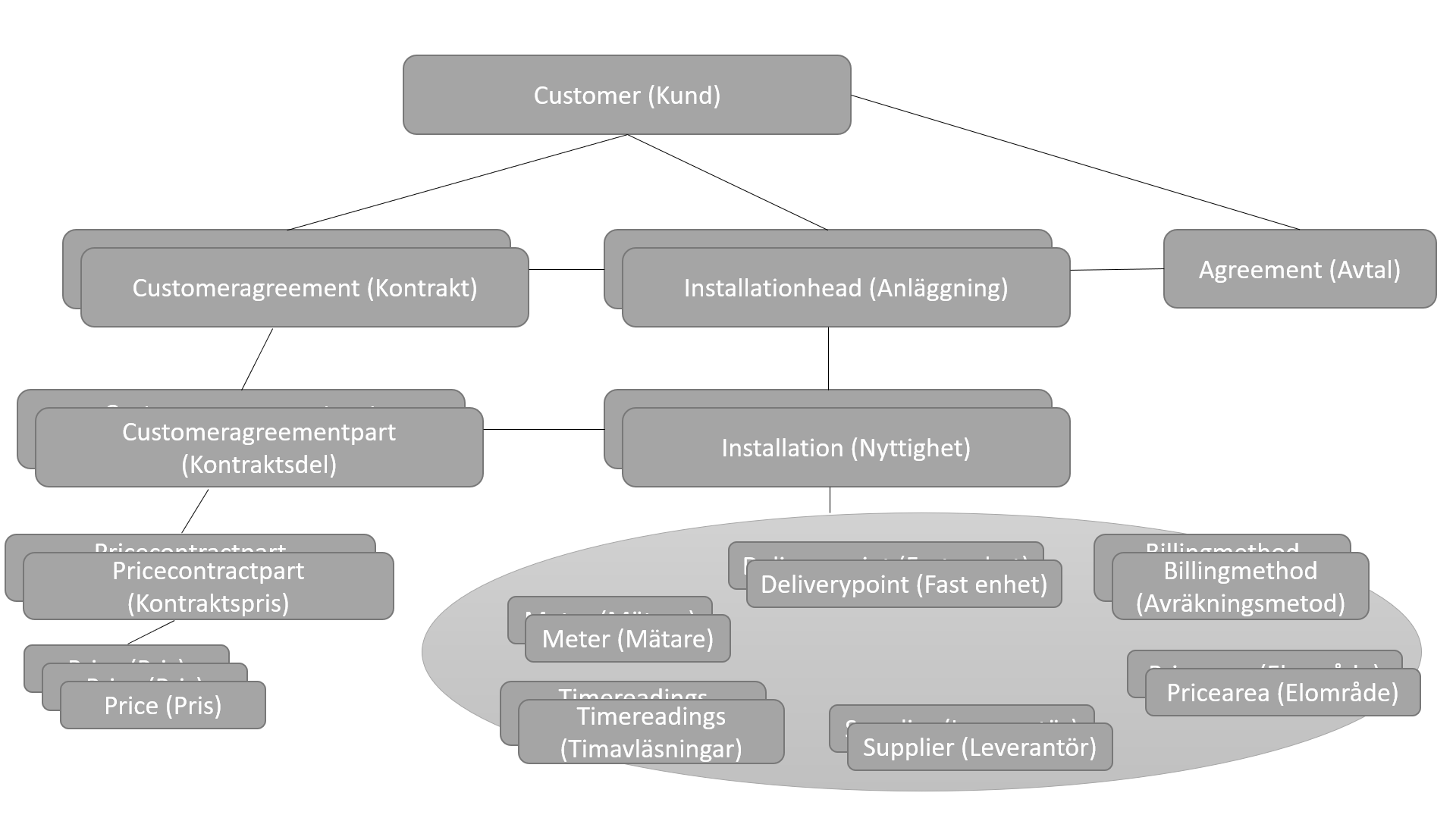

Structure in Lime

Endpoints / Messages

The resources Xellent posts messages to are:

Method Message URL
POST Customer https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/customer/
POST Customeragreement https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/customeragreement/
POST Customeragreementpart https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/customeragreementpart/
POST Agreement https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/agreement/
POST Utilinstall https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/utilinstall/
POST DPDetail https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/dpdetail/
POST Timereadings https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/timereadings/
POST Connectedsupplier https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/connectedsupplier/
POST Billingmethod https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/billingmethod/
POST Pricearea https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/pricearea/
POST Docuref https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/docuref/
POST Pricecontractpart https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/pricecontractpart/
POST Estimatedconsumption https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/estimatedconsumption/
POST Estimatedconsumptionfjv https://<lime server DNS>/<application name>/limepkg-xellent-integration/xellent/estimatedconsumptionfjv/

Customer

Summary: Corresponds to the customer (Kund) object in Xellent and Lime.

Limetype(s): [company] is the intended limetype

Example Message Customer
    {
        "ChangeId": "AMR123456789",
        "CustTable": {
            "AccountNum": "1337",
            "Address": "Limevägen 1\n12345 Limevalla",
            "AddressTable_DirParty": [
                {
                    "City": "Limevalla",
                    "CountryRegionId": "SE",
                    "IsPrimary": "Yes",
                    "Street": "Limevalla 1",
                    "ZipCode": "12345"
                },
                {
                    "City": "Limeköping",
                    "CountryRegionId": "SE",
                    "IsPrimary": "No",
                    "Street": "Citrusgatan 2",
                    "ZipCode": "54321"
                }
            ],
            "CellularPhone": "072-XXXXXXX",
            "Currency": "SEK",
            "CustClassificationId": "",
            "CustGroup": "K",
            "EGS_AutoGiroStatus": "None",
            "EGS_DateOfDeath": "",
            "EGS_Death": "No",
            "EGS_eMailInvoice": "",
            "EGS_EnergyAccount": "No",
            "EGS_MovingInAgreement": "No",
            "EGS_Protect": "No",
            "EGS_SMSInvoice": "",
            "Email": "kontakt@lime.tech",
            "ExtCodeValueTable": [],
            "EXU_AdditionalName": "",
            "EXU_AlternativeCustomerNumber": "199005211111",
            "EXU_TechnicGroup1": "",
            "EXU_TechnicGroup2": "",
            "EXU_TechnicMemo1": "",
            "EXU_TechnicTxt3": "",
            "MainContactId": "",
            "Memo": "",
            "Name": "Lenny Lennsson",
            "ParentAccountNum": "",
            "PartyType": "Organization",
            "PaymMode": "BGOCR",
            "PaymTermId": "30 N",
            "Phone": "010-1234567",
            "RecId": "6546546546",
            "Website": ""
        },
        "MessageType": "Update"
    }

Customeragreement

Summary: Corresponds to the customer agreement (Kontrakt) object in Xellent and Lime.

Limetype(s): [customeragreement] is the intended limetype

Example Message Customeragreement
    {
        "ChangeId": "AMR0078123123",
        "EXU_ContractTable": {
            "AttachmentNum": "9504601",
            "BillingBasis": "Prepayment",
            "BillingPlanNum": "MÅNAD",
            "ContractEndDate": "",
            "ContractNum": "7164833",
            "ContractStartDate": "2023-06-13",
            "ContractTemplateNum": "B12 Sch IN",
            "ContractType": "Installation",
            "CustAccount": "1337",
            "CustPaymCode": "30 N",
            "EGS_CustRef": "",
            "EGS_EDIInvoice": "No",
            "EGS_EDIReference": "",
            "EGS_eMailInvoice": "",
            "EGS_PEPPOLInvoice": "No",
            "EGS_SelfBilling": "No",
            "EGS_SMSInvoice": "",
            "EInvoiceEANNum": "",
            "InvoiceAddress": [
                {
                    "Address": "Box 3 ",
                    "City": "Limeholm",
                    "CountryRegionId": "",
                    "Street": "Box 3",
                    "ZipCode": "11111"
                }
            ],
            "InvoiceLinesExclTax": "TaxExcluded",
            "LockDueDate": "No",
            "NextBillingIncludeDate": "2023-06-30",
            "PrePaymentPrincip": "Period",
            "PrintWellcomeLetter": "No",
            "ReadingControl": "NextBillingEndDate",
            "ReasonToEndCalcDate": "",
            "ReasonToEndCalcGroup": "",
            "ReasonToEndCalcTxt": "",
            "RecId": "1342426291",
            "ReferenceToMainContract": "",
            "TakeOffInvoiceNumGroup": ""
        },
        "MessageType": "Update"
    }

Customeragreementpart

Summary: Corresponds to the customer agreement part (Kontraktsdel) object in Xellent and Lime.

Limetype(s): [customeragreementpart] is the intended limetype

Example Message Customeragreementpart
    {
        "ChangeId": "AMR007123123",
        "ContractPartTable": {
            "AMRCode": "",
            "CntrPartPriceMngmt": [],
            "CompanyId": "XYZ",
            "ContractNum": "712345",
            "ContractPartSubReferenceType": "Blank",
            "ContractType": "Installation",
            "DeliveryCategory": "BB",
            "DeliveryGroupNum_RateCode": "100/10Mb",
            "EGS_EffektReconciliation": "No",
            "EGS_EnvironmentCode": "",
            "EndDate": "",
            "InstAgreeNum": "100123",
            "ProductNum": "PrivMån",
            "ProductTable": [
                {
                    "DeliveryCategory": "BB",
                    "ProductNum": "PrivMån",
                    "ProductTxt": "BB Privat",
                    "StartDate": "2023-01-01"
                }
            ],
            "RecId": "123123123123",
            "StartDate": "2023-06-01"
        },
        "MessageType": "Insert"
    }

Agreement

Summary: Corresponds to the agreement (Avtal) object in Xellent and Lime.

Limetype(s): [agreement] is the intended limetype

Example Message Agreement
    {
        "":""
    }

Utilinstall

Summary: Corresponds to the installationhead (Anläggning), installation (Nyttighet), meter (Mätare) and meterpoint (Mätpunkt) objects in Xellent and Lime.

Limetype(s): [installationhead], [installation], [meter], [meteringpoint] are the intended limetypes

Example Message Utilinsall
    {
        "ChangeId": "AMR007321321",
        "EXU_UtilInstallation": {
            "CategoryNum": "13",
            "CloseDate": "",
            "CompanyId": "XYZ",
            "DeliveryCategory": "FJV",
            "EXU_ContractPart": [
                {
                    "CompanyId": "XYZ",
                    "ContractNum": "7111222",
                    "ContractType": "Installation",
                    "DeliveryCategory": "FJV",
                    "EndDate": "",
                    "InstAgreeNum": "22333444",
                    "ProductNum": "FJV Normal",
                    "Startdate": "2014-06-01"
                }
            ],
            "EXU_DelPoint": [
                {
                    "AttachmentNum": "22333444",
                    "CompanyId": "XYZ",
                    "DeliveryCategory": "FJV",
                    "DelpointGroupCode1": "",
                    "EGS_ConsumptionYearTable": [],
                    "EGS_DelPointTechnicalNo": "",
                    "EGS_MeterPointTypeCode": "",
                    "EMS_NetArea": "",
                    "EMS_ProductCode_SE": "2055",
                    "EXU_Relations": [
                        {
                            "CompanyId": "XYZ",
                            "DeliveryCategory": "FJV",
                            "EndDate": "",
                            "EXU_MeterTable": [
                                {
                                    "CompanyId": "XYZ",
                                    "ControlDate": "2024-11-19",
                                    "DeliveryCategory": "FJV",
                                    "DispStartDate": "",
                                    "FabricationNumberAlfa": "1234567",
                                    "MeterNum": "AB-112233",
                                    "MeterStatus": "Active",
                                    "MeterTechnicGroup2": "",
                                    "MeterType": "AB",
                                    "PurchaseDate": "2014-01-01",
                                    "Qp": "0",
                                    "Real1": "0",
                                    "Real2": "0",
                                    "Real3": "0",
                                    "Real4": "0",
                                    "Real5": "0",
                                    "Real6": "0",
                                    "Txt1": ""
                                }
                            ],
                            "MeterNum": "AB-112233",
                            "StartDate": "2014-11-19"
                        }
                    ],
                    "FuzeSize": 0,
                    "MeteringPoint": "",
                    "NetCompany": "0",
                    "Num": "StdFJV",
                    "Position": "",
                    "PositionName": "Nyckel HVC",
                    "SupplierName": "0"
                }
            ],
            "EXU_FixedUnitTrans": [
                {
                    "AttachmentNum": "22333444",
                    "DeliveryCategory": "FJV",
                    "DelPointNum": "StdFJV",
                    "FromDate": "2013-01-01",
                    "Num": "Effekt FV"
                }
            ],
            "EXU_Installation": [
                {
                    "AddrLocation": "Fastighet",
                    "City_SE": "Limespång",
                    "CountyNum": "3232",
                    "InstAddressFormatted": "Limeladan 1 - 9, Fastighet, 55465 Limespång",
                    "InstApartment": "",
                    "InstBBRNum": "Limemannen 3-7",
                    "InstFloor": "",
                    "InstGroupNum": "Standard",
                    "InstHouseNumStart": "1",
                    "InstNum": "22333444",
                    "ReadingPlanNum": "Mån-Fjärr",
                    "StreetName": "Limeladan",
                    "StreetNum": "0700",
                    "Street_SE": "Limeladan 1-9",
                    "ZipCodeId": "55456"
                }
            ],
            "EXU_InstDistr": [
                {
                    "DataAreaId": "XYZ",
                    "DistrCat": "Avläsning",
                    "DistrNum": "1010",
                    "InstNum": "22333444",
                    "ReadingPortion": ""
                }
            ],
            "InstNum": "22333444",
            "InstStatus": "Active",
            "ProductionType": "None",
            "ReadingPlanNum": "Mån-fjärr",
            "ReasonToClose": "",
            "RecId": "1342198269",
            "ReopeningDate": "",
            "SupplyNum": "FjvGrd20",
            "UtilInstStartDate": "2013-01-01"
        },
        "MessageType": "Update"
    }

Meterpoints (Mätpunkter)

Summary: Meterpoints are created from EXU_DelPoint entries within the Utilinstall message. Each EXU_DelPoint item produces one meteringpoint record in Lime.

Limetype: [meteringpoint]

How it works:

When a Utilinstall message is processed (Insert or Update), the handle_meter_points logic:

  1. Checks if meterpoint_schema is configured and enabled in Lime Admin.
  2. Iterates over all EXU_DelPoint entries nested under EXU_UtilInstallation.
  3. For each EXU_DelPoint, creates or updates a meteringpoint record using the configured mapped_values (e.g. MeteringPoint, Num, AttachmentNum, etc.).
  4. Attaches the meterpoint to the parent installation via a relation.

Fixed Unit (EXU_FixedUnitTrans) mapping:

The EXU_FixedUnitTrans table contains fixed unit information linked to delivery points. The connection between the two tables is:

  • EXU_FixedUnitTrans.DelPointNum → EXU_DelPoint.Num

For each meterpoint, the code finds the matching EXU_FixedUnitTrans entry and writes its Num value (the fixed unit identifier, e.g. "US140L Mat", "US 240L") to the fixedunit property on the meteringpoint limetype.

Field mappings (meterpoint_schema):

Xellent Property (EXU_DelPoint) Lime Property (meteringpoint)
MeteringPoint metering
AttachmentNum attachmentnum
CompanyId companyid
DeliveryCategory deliverycategory
EMS_ProductCode_SE ems_productcode_se
Num num
EGS_EmptyingCodeNum egs_emptyingcodenum
EGS_EndDate egs_enddate
Position position
PositionName positionname
Xellent Property (EXU_FixedUnitTrans) Lime Property (meteringpoint)
Num fixedunit

Lookup expression: The meterpoint is looked up by MeteringPoint → metering.

DPDetail

Summary: Corresponds to the deliverypointdetail (Fast Enhet) object in Xellent and Lime.

Limetype(s): [deliverypointdetail] is the intended limetype

Example Message DPDetail
   {
        "ChangeId": "AMR001231234",
        "EXU_Fixedunittrans": {
            "AttachmentNum": "60105901",
            "AvailableQty": "0",
            "CompanyId": "XYZ",
            "DeliveryCategory": "RH",
            "DelPointNum": "Restavfall",
            "EXU_DelPoint": [
                {
                    "AttachmentNum": "60105901",
                    "CompanyId": "XYZ",
                    "DeliveryCategory": "RH",
                    "EXU_UtilityInstallation": [
                        {
                            "CategoryNum": "1",
                            "CompanyId": "XYZ",
                            "DeliveryCategory": "RH",
                            "EXU_Category": [
                                {
                                    "CategoryNum": "1",
                                    "DeliveryCategory": "RH"
                                }
                            ],
                            "InstNum": "60105901",
                            "SupplyNum": "Linjär",
                            "UtilInstStartDate": "2000-04-01"
                        }
                    ],
                    "Num": "Restavfall"
                }
            ],
            "Fromdate": "2023-05-01",
            "Num": "US 240L",
            "Qty": "1",
            "RecId": "5637332078"
        },
        "MessageType": "Insert"
    }

Timereadings

Summary: Corresponds to the timereading (Timavläsningar) object in Xellent and Lime.

Limetype(s): [timereading] is the intended limetype

Example Message Timereadings
   {
        "ChangeId": "AMR007854931",
        "EXU_TimeReadPeriod": {
            "AttachmentNum": "3401606",
            "CompanyId": "XYZ",
            "DeliveryCategory": "EL",
            "DelPointNum": "StdEL",
            "EndDate": "",
            "RecId": "1342262030",
            "StartDate": "2023-06-09",
            "TimeReadings": "No"
        },
        "MessageType": "Insert"
    }

Connectedsupplier

Summary: Corresponds to the supplier (Leverantör) object in Xellent and Lime.

Limetype(s): [supplier] is the intended limetype

Example Message Connectedsupplier
   {
        "ChangeId": "AMR007854591",
        "ems_energySupplierTable": {
            "AttachmentNum": "29407901",
            "CompanyId": "XYZ",
            "DeliveryCategory": "EL",
            "DelPointNum": "StdEL",
            "EndDate": "",
            "EXU_Supplier": [
                {
                    "EANNumber": "11111",
                    "EMS_DeliveryCategory": "EL",
                    "EMS_FirmID": "556036-2138",
                    "Name": "Vattenfall AB"
                }
            ],
            "RecId": "1342407643",
            "StartDate": "2023-09-01",
            "Supplier": "11000"
        },
        "MessageType": "Insert"
    }

Billingmethod

Summary: Corresponds to the billingmethod (Avräkningsmetod) object in Xellent and Lime.

Limetype(s): [billingmethod] is the intended limetype

Example Message Billingmethod
   {
        "ChangeId": "AMR001231234",
        "exu_billingmethodPeriod": {
            "AttachmentNum": "12312312",
            "BillingMethod": "HourBilling",
            "CompanyId": "XYZ",
            "DeliveryCategory": "EL",
            "DelPointNum": "StdEL",
            "EndDate": "2154-12-31",
            "RecId": "1342261280",
            "StartDate": "2023-06-08"
        },
        "MessageType": "Insert"
    }

Pricearea

Summary: Corresponds to the pricearea (Elområde) object in Xellent and Lime.

Limetype(s): [pricearea] is the intended limetype

Example Message Pricearea
    {

    }

````

</details>

---

### Docuref
Summary:
Limetype(s):
Message:
### Pricecontractpart
**Summary**: *Corresponds to the pricecontractpart (Pris Kontraktsdel) object in Xellent and Lime.*

**Limetype(s)**: [`pricecontractpart`] is the intended limetype

<details>
  <summary>Example Message Pricecontractpart</summary>

```JSON
    {
        "ChangeId": "AMR007644454",
        "EXU_ContractPart": {
            "AMRCode": "",
            "CompanyId": "XYZ",
            "ContractNum": "7051198",
            "ContractPartSubReferenceId": "",
            "ContractPartSubReferenceType": "Blank",
            "DeliveryCategory": "VA",
            "EGS_ProdPrices": [
                {
                    "BillingType": "Period",
                    "ItemId": "VA Fast avgift",
                    "ItemName": "Årsavgift",
                    "PriceExTax": "4729",
                    "PriceIncTax": "5911.25"
                },
                {
                    "BillingType": "Metering",
                    "ItemId": "VA Rörl avg",
                    "ItemName": "Förbrukning",
                    "PriceExTax": "17.9",
                    "PriceIncTax": "22.375"
                }
            ],
            "EGS_ProdPricesSum": [
                {
                    "BillingType": "Metering",
                    "PriceExTax": "17.9",
                    "PriceIncTax": "22.375"
                },
                {
                    "BillingType": "Period",
                    "PriceExTax": "4729",
                    "PriceIncTax": "5911.25"
                }
            ],
            "EndDate": "2023-03-31",
            "InstAgreeNum": "1000101",
            "ProductNum": "VA",
            "RecId": "1342177341",
            "ServiceAgreementNum": "",
            "StartDate": "1999-04-01"
        },
        "MessageType": "Update"
    }
````

</details>

---

### Estimatedconsumption

**Summary**: _Corresponds to the estimatedconsumption (Förväntad Årsförbrukning) object in Xellent and Lime._

**Limetype(s)**: [`estimatedconsumption`] is the intended limetype

<details>
  <summary>Example Message Estmiatedconsumption</summary>

```JSON
    {
        "ChangeId": "AMR007806634",
        "EGS_ConsumptionYearTable": {
            "AttachmentNum": "29310001",
            "CompanyId": "XYZ",
            "DeliveryCategory": "EL",
            "ExpectedYearlyConsumption": "9268",
            "Num": "StdEL",
            "RecId": "1342183987",
            "Unit": "kWh"
        },
        "MessageType": "Update"
    }

Tables and fields
